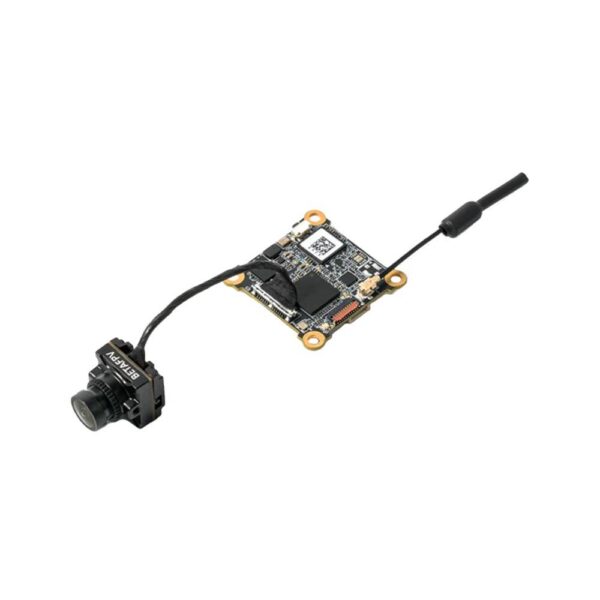

BetaFPV P1 Air Unit HD VTX

Details Ratings Features ArtLynk Protocol: A low-latency, long-range communication protocol for drones, offering superior stability and range over traditional analog VTX. Lightweight & Affordable HD: Weighs just 6.8g, offering a compact and affordable HD VTX solution. Reliable Video Transmission: Delivers smooth video with ~60ms latency and over 5km range. Wide‑Angle 1080p Clarity: 1/2.9” CMOS sensor and 170° FOV for a crisp, immersive live view. Plug‑and‑Play Compatibility: Standard 6‑pin port works seamlessly with Betaflight and BETAFPV flight controllers. Specifications AIR UNIT Weight: Air Unit (Camera excluded): Approx. 3.61g Air Unit (Camera included): Approx. 6.5g Antenna: Approx. 0.44g Mounting Pattern: 25.5 x 25.5mm Mounting Hole Diameter: 2.5mm Dimensions (L x W x H): Air Unit: 30 x 30 x 5.5mm Camera: 14 x 14 x 17mm Ports: SH 1.0 6-pin (FC) SH 1.0 4-pin (USB) VTX Frequency: 5.1-5.9 GHz Effective Isotropic Radiated Power (EIRP): ＜200mW (FCC/SRRC) <25mW (CE) Video Transmission Range: >5km Video Transmission Latency: Approx. 60ms Live View Quality: 1080p@60fps Bandwidth: 10MHz Antenna: Single antenna Channels: 3 CAMERA Mounting Width: 14mm Mounting Hole: M2 Image Sensor: 1/2.9” CMOS Field of View (FOV): 170° Video Format: MP4 Max Video Transmission Bitrate: 20Mbps OSD: Canvas mode FIRMWARE Input Voltage: 5V Operating Temperature: -10℃ to 40℃ COMPATIBILITY Supported FC: Betaflight FC & BETAFPV FC Links User Manual for P1 Air Unit Firmware for P1 Air Unit Included: 1x P1 Air Unit HD VTX 1x 6Pin Cable 1x Accessories Package 4x Shock-absorbing Balls 2x M2-4 Screws 4x M2-6 Screws 1x User Manual SKU: BF.P1.AIR.VTX Category: Category Name
