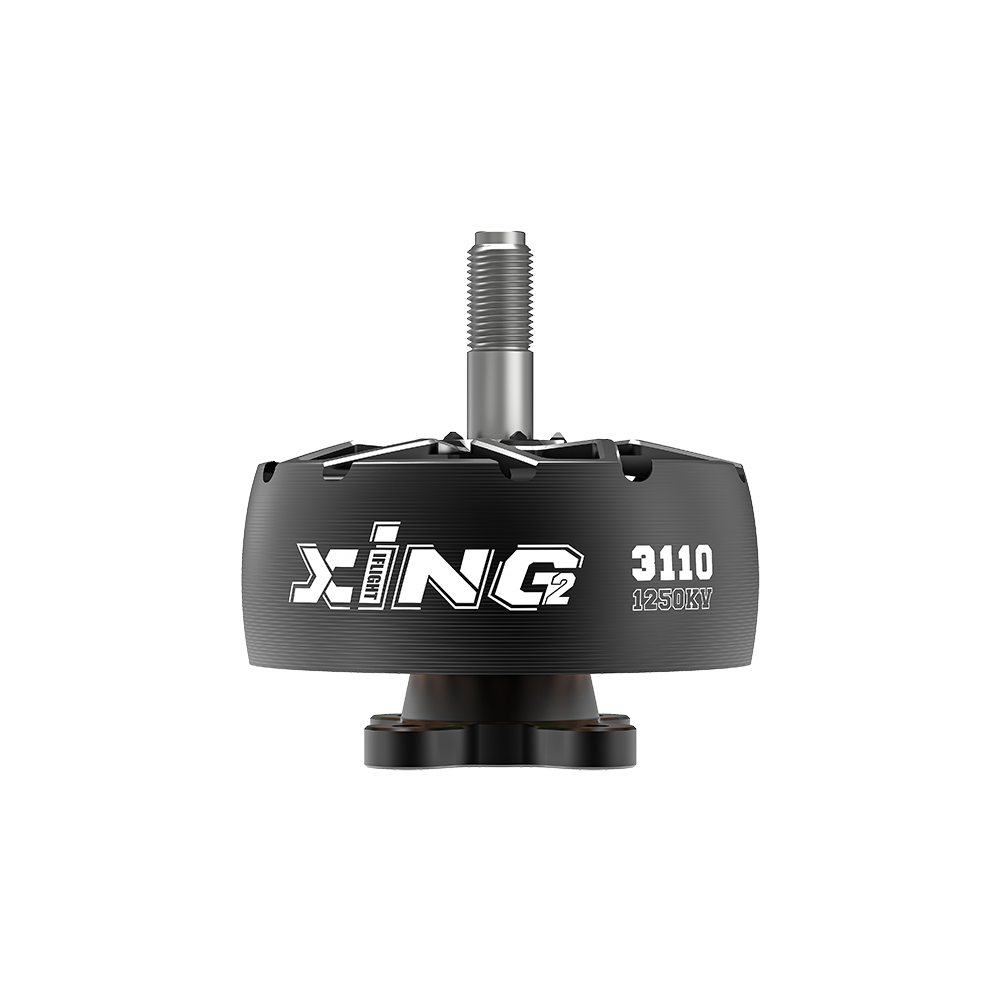

iFlight XING2 3110 Cinelifter Motor

iFlight XING2 3110 Cinelifter Motor The iFlight XING2 3110 Cinelifter Motor is built for powerful, smooth, and reliable heavy-lift performance. Designed for cinematic and X8 rigs, it delivers high torque, fast throttle response, and excellent efficiency. Upgraded N52H curved magnets reduce motor lag and improve control feel, giving quicker PID response and a more locked-in flight. Premium NSK bearings and a strong titanium alloy shaft increase durability and reduce vibration. A tighter air gap design boosts magnetic efficiency, producing more power with less heat. The result is cleaner flight, better throttle precision, and dependable performance under load. Product Highlight’s 5mm titanium alloy shaft, our strongest prop shaft ever! Crash resistant 7075 aluminum bell Smooth and long-lasting NSK 11x5x5 bearings Center slotted N52H curved arc magnets XING O-ring bearing gap protection Motor wires protector Dynamically balanced Designed for 7/8/9 inch Cinelifter. Product Information KV: 900KV / 1250KV / 1600KV Weight(included wire): 77g(900KV/1250KV) / 76.4g(1600KV) Dimension: φ38.72*39.6mm Interphase Resistance: 78mΩ / 43mΩ / 36mΩ Input Volts: 33.6V (900KV)/ 4~6S(1250KV)/25.2V(1600KV) Peak Current: 65.54A / 84.68A / 65.06A Max Watt: 2143.8W / 1976.4W / 1550.4W Mounting Holes: 19*19 φ3mm Rotor Specifications: Unibell Shaft Diameter: 5mm Shaft Protruding Length: 15mm Lead: 260mm/18AWG Magnet: N52H Curved Configuration: 12N14P Bearing Type: NSK Bearing Specification: φ11*φ5*5 Winding: Single Strand copper winding In the box 1 x XING2 3110 Brushless Motor 4 x M3x10 screws 1 x M5 Flange Nut More Information
