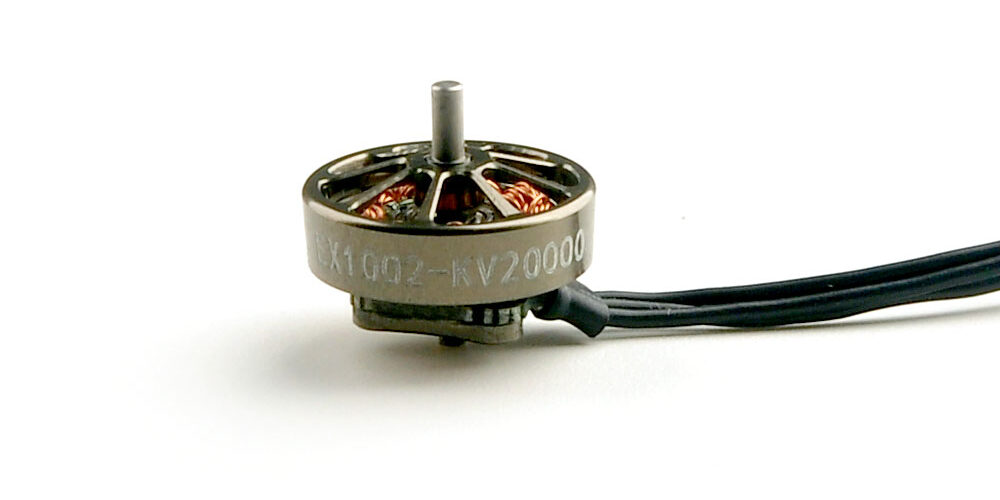

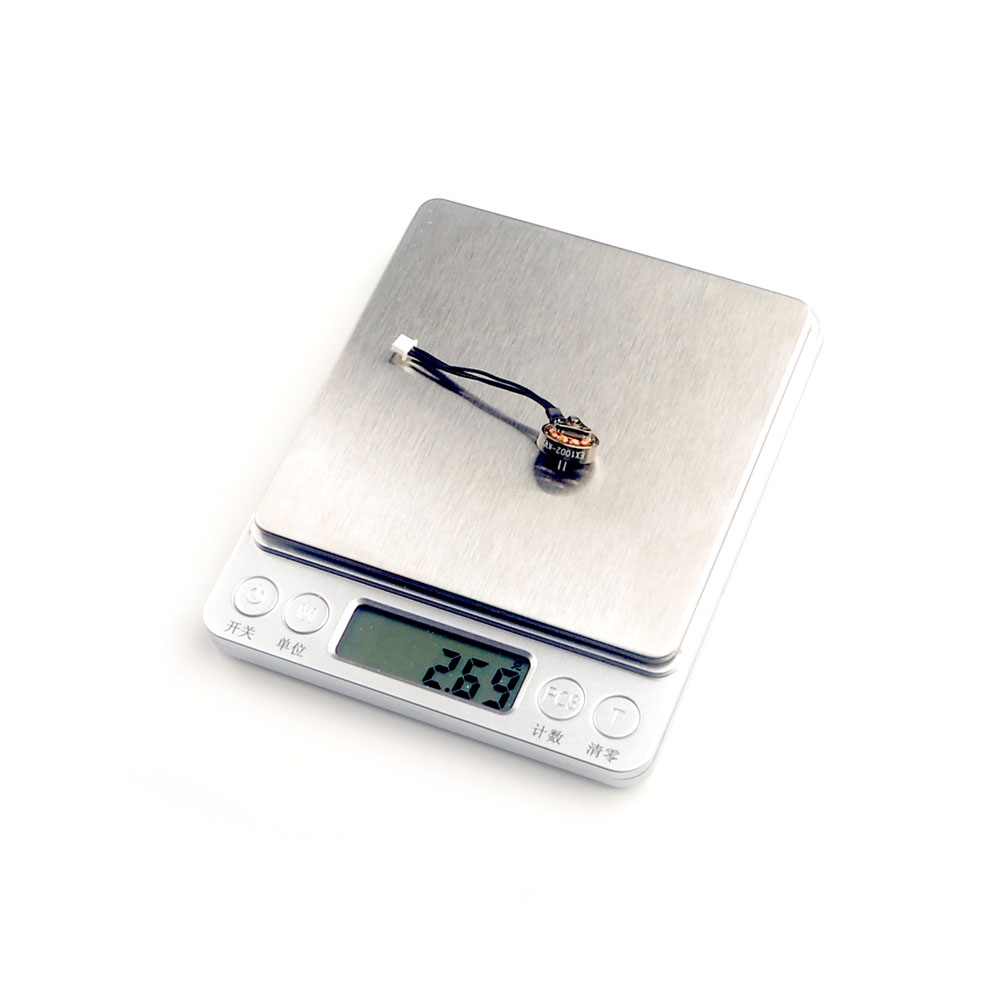

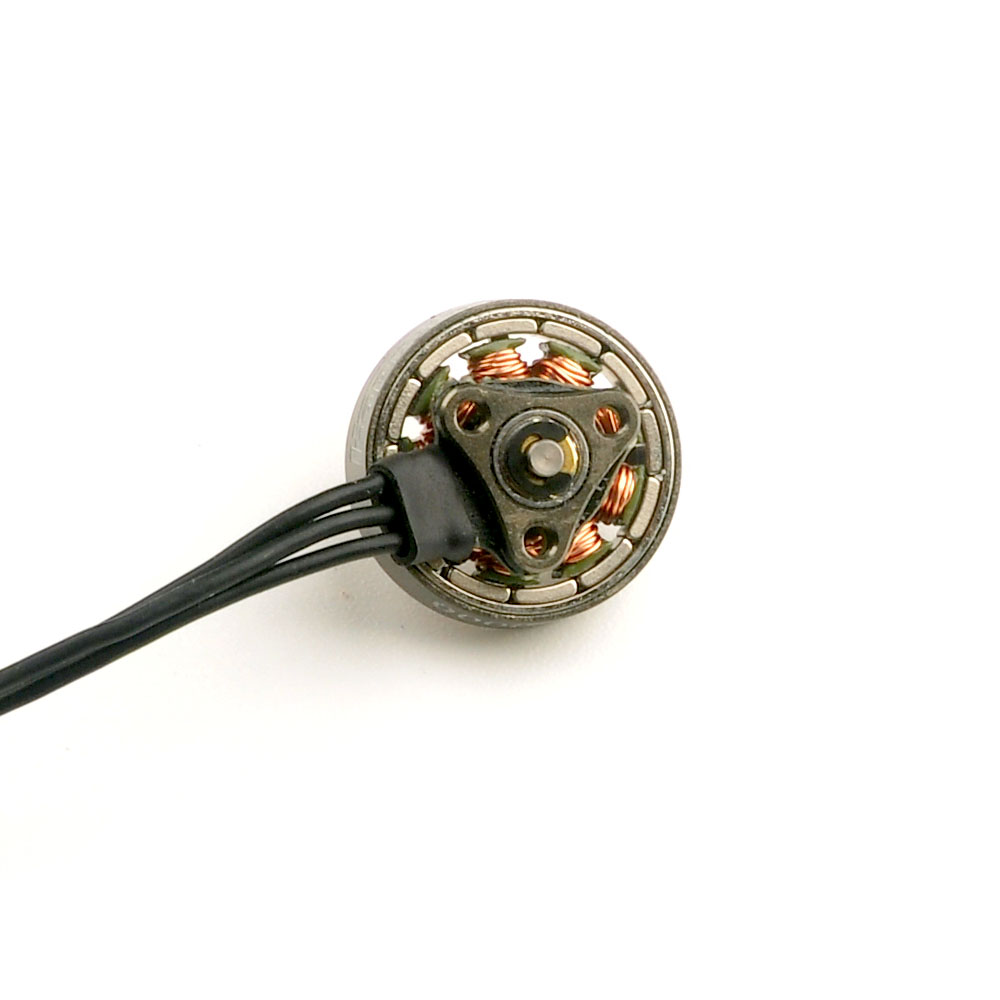

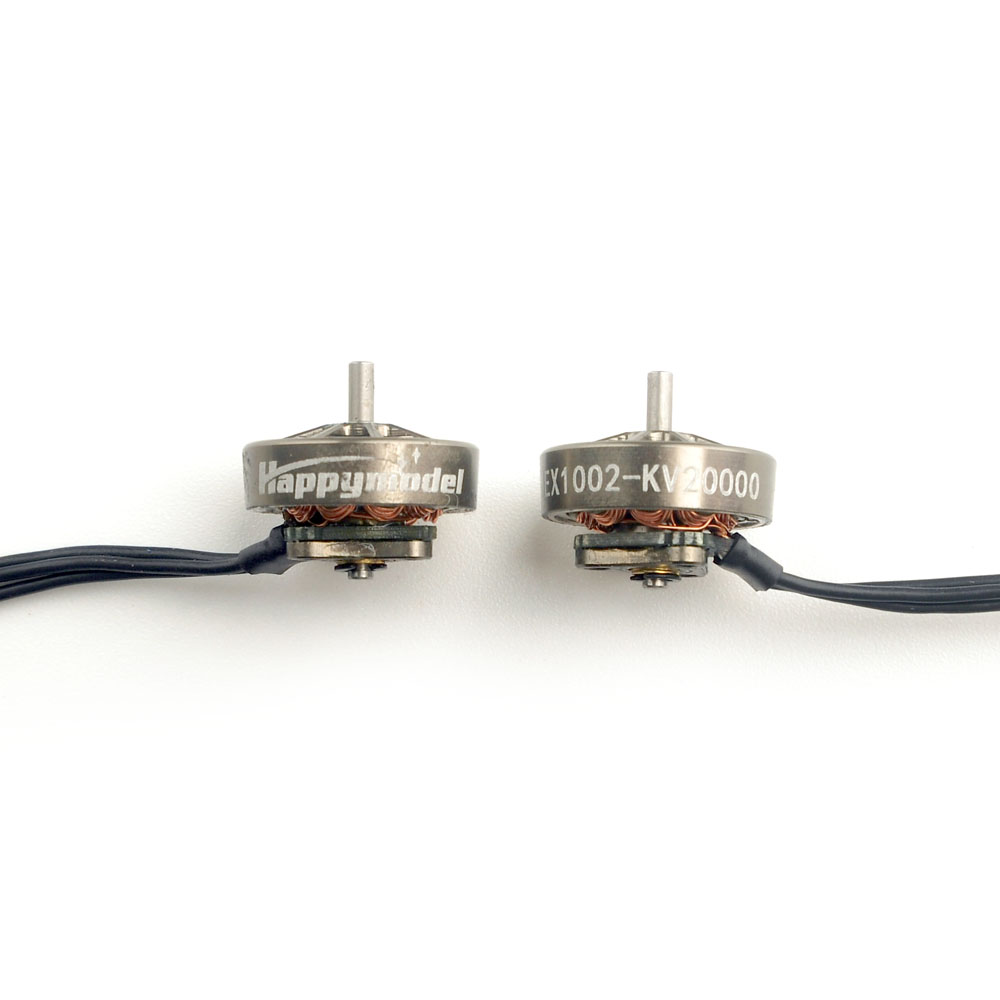

Happymodel EX1002 20K 1S Brushless Motor This is the HappyModel EX1002 2000kV Brushless Motor. This motor can be found on some of the latest HappyModel 75mm whoops. Don’t let this stop you from using the motor in your custom whoop or toothpick builds. Product Information Brand name: HappyModel Item name: EX1002 brushless motor KV: 20000KV Shaft Diameter: 1.5mm Configuration: 9N12P Stator Diameter: 10mm Stator Length: 2mm Motor Dimension(Dia.*Len): Φ13.5mm*12.5mm Terminals: JST1.25mm No. of Cells(Lipo): 20000KV compatible with only 1S lipo Wire length(exclude connector):40mm Weight: 2.45g Compatible for Mobula7 1S version , Mobula7 HD 1S version, Moblite7 HDZERO, and Moblite7 avatar. Happymodel EX1002 KV20000 Brushless motor Bench data No-load voltage No-load current No-load Speed KV Voltage (v) Current (A) Thrust (g) Efficiency (g/w) Power (w) Propeller 2 0.5 41820 20910.0 3.7 1.01 12.9 3.452 3.737 Gemfan 2015-2 2-blade propeller 3.7 2.01 23.3 3.133 7.437 3.7 3 32.1 2.892 11.1 3.7 4 40.8 2.757 14.8 3.7 5 48.9 2.643 18.5 3.7 5.99 55.4 2.500 22.163 In the box 1 x HappyModel EX1002 2000kV Brushless Motor More Information HappyModel Support Page
