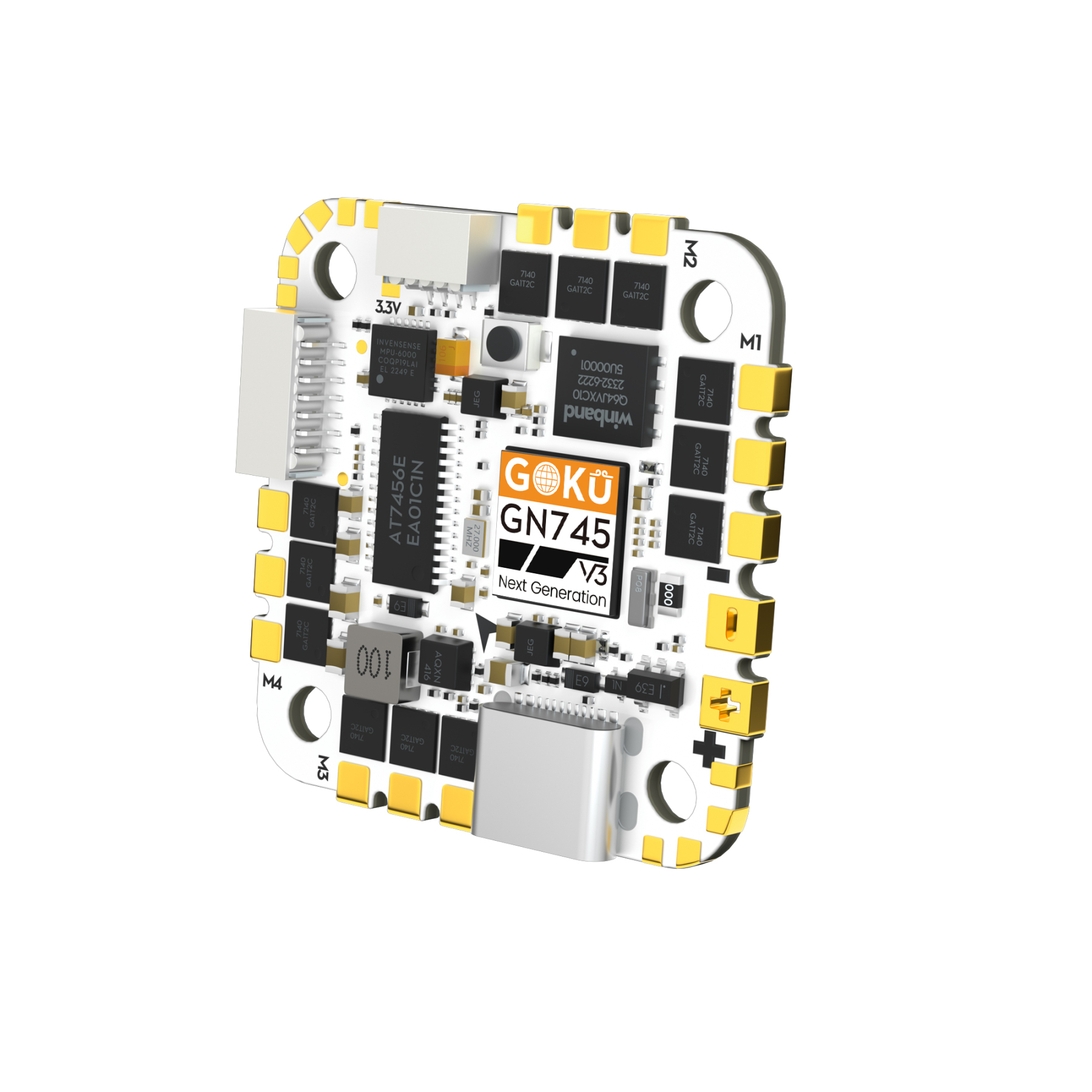

Flywoo GOKU GN745 45A AIO AM32 (ICM42688P ) V3

Flywoo GOKU GN745 45A AIO AM32 (ICM42688P ) V3 Since its launch, the GOKU GN745 AIO has stood as Flywoo’s top-tier AIO product, earning widespread acclaim from Betaflight, INAV, and Ardupilot enthusiasts. Now, we’re excited to introduce the latest upgrade in this series—the V3 version! The V3 boasts a new ESC two-in-one drive solution, enhancing the continuous current capacity to 45A and improving the over current protection capability of the motor pads, resulting in a more powerful overall performance. Furthermore, the V3 version significantly advances in terms of convenience, featuring 4 new direct-plug UART ports and adopting a Type-C interface for easier connectivity. Product Highlights Performance: Utilizes STM32F745 chip, AM_32 firmware, and ICM42688P gyro, with dual BEC, barometer, black box, supports 7 serial ports and I2C. Plug & Play: Compatible with O3 air unit, GPS, Camera, Analog VTX, and Receiver without the need for soldering. Type-C Interface: Features a Type-C interface for improved compatibility and easier connection. Compatibility: Supports BF, INAV, and Ardupilot platforms. New Layout: New ESC two-in-one drive solution, with a continuous current up to 45A. Better Protection: Larger motor pad area with improved overcurrent protection. GOKU GN745 45A AIO AM32 ( ICM42688P ) V3 GOKU GN745 45A AIO BL_32 (MPU6000 ) V1.2 Firmware: STM32F745 BGA STM32F745 BGA Continuous Current: 45A-50A MAX 40A-45A MAX BEC: 5V 2A 5V 2A/9V 2A ESC BLHELI_32 BLHELI_32 Flash: 1MB 1MB Barometer: DPS310/SPL06 DPS310/SPL06 Gyro:  ICM42688P MPU6000 Motor: M1-M4 OUTPUT I2C: SCL/SDA M1-M4 OUTPUT I2C: SCL/SDA Uarts: 1,2,3,4,5,6,7 1,2,3,4,5,6 Plug Uart ports YES \ connector： Type-C Micro OSD: AT7456E AT7456E Hole: 25.5*25.5-3mm 25.5*25.5-3mm Size: 33.5×33.5mm 33.5×33.5mm Weight: 9.4g 8.5g Product Information BF Flight Controller Firmware: FLYWOOF745 INAV Firmware: FLYWOOF745 Ardupilot Firmware: FLYWOOF745 MCU: STM32F745 32-bit processor,216MHz, 1MB Flash IMU: ICM42688P (SPI) Barometer: SPL06 USB VCP Driver (all UARTs usable simultaneously; USB does not take up a UART) 7 hardware UARTS (UART1,2,3,4,5,6,7) Supports serial receivers (SBUS, iBus, Spektrum, Crossfire) only. PPM and PWM receivers are not supported. Onbord 8Mbytes for Blackbox logging 5V Power Out: 2.0A max 3.3V Power Out: 0.5A max Dimensions: 33.5×33.5mm Mounting Holes: Standard 25.5/26.5mm square to center of holes Weight: 9.4g Onboard 4in1 ESC Support AM_32 Support PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600,Dshot1200 Input Voltage: 2-6S Lipo Continuous Current: 45A Firmware: GOKU_F4A32_PRO In the Box 1x UNICON UPL Capacitor 25V 470UF 4x M2x6.6 Shock-Absoring Ball 4x M2 Rubber Ring 1x XT30 Power Cable 1x DJI O3 Connection Cable 1x VTX & Camera Connection Cable 1x Receiver Connection Cable 1x GPS Compass Connection Cable
