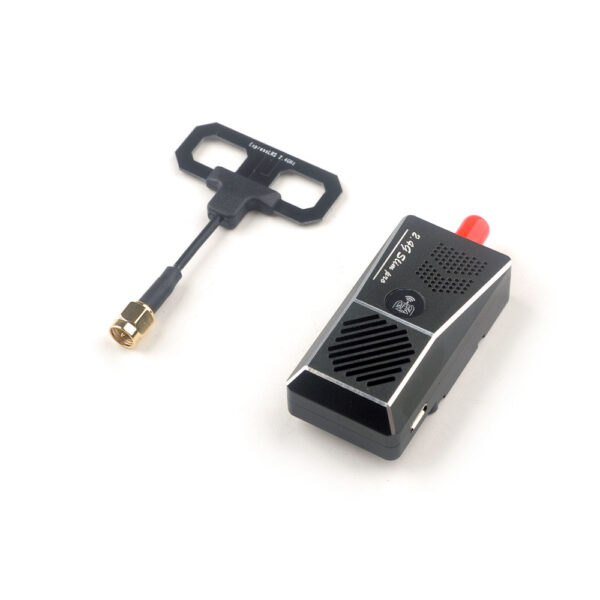

Happymodel ES24TX Slim Pro ELRS TX Module

Details Ratings Specifications: Regulatory Domain: ISM2400 MCU: ESP32(main),ESP8285(as ESP backpack) RF chip: SX1280IMLTRT Frsky Lite 8pin socket Frequency Range: 2400 MHz to 2500 MHz Maximum receive refresh rate: 500Hz Minimum receiver refresh rate: 25Hz RF Output Power: ≤30dBm Power supply voltage: 5v~12v Weight: 50gram (without antenna） Dimension: 67.5mm*30mm*20.5mm (without antenna) Antenna gain: 1.87dBi Firmware target: HappyModel_ES24TX_Pro_Series_2400_TX Features: Supports up to 1000mw RF power (T-lite radio and Tango2 radio need external power supply) RGB LED ready Cooling Fan ready Open source ExpressLRS Long range, low latency and High re-flashed Rates Telemetry data transmission supported CNC aluminum protective shell Included: ES24TX Slim Pro TX module *1 Happymodel Moxon 2.4GHz antenna *1 SKU: HM.ES24TX.SLIM.ELRS. Categories: Radio Accessories, Radio Transmitters
