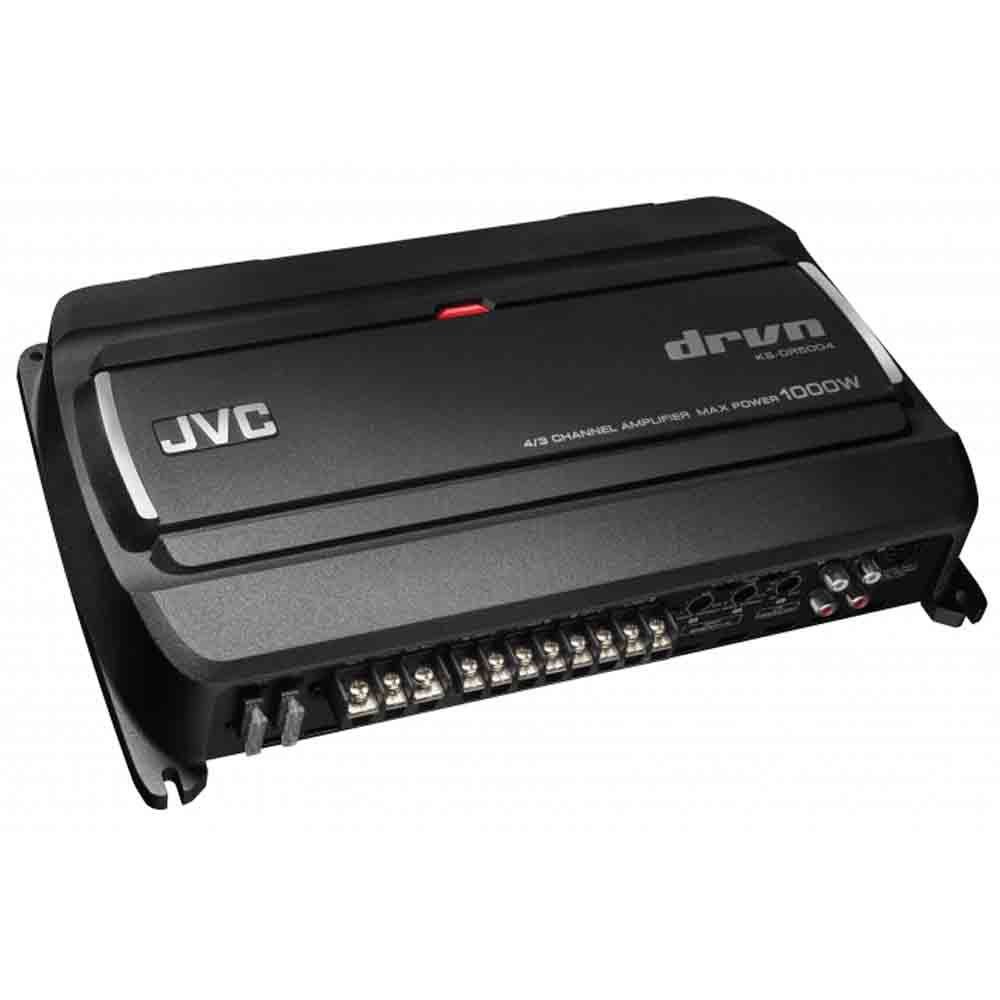

JVC KS-DR5004 4 channel Bridgeable audio amplifier

When it is time for some serious power for your car audio system, JVC KS-DR5004 4 channel Bridgeable audio amplifier is the way to go. The 4 channel Bridgeable Series Amplifiers are in line with the high power output that JVC is known for.Incorporating Super circuitry allows for dedicated, efficient power for higher bass response without sacrificing sound pressure. The outputs chosen for the amplifier are typically used for music production where high power, efficient cooling and minimal distortion are key. They allow these amps to produce high power with minimal distortion.Features: Operation Channel 4, 3, or 2 Maximum Power Output 1000W RMS Power Output 70W x 4 into 4 ohms at 20 – 20,000Hz, 100W x 4 into 2 ohms at 20 – 20,000Hz , 200W x 2 into 4 ohms at 20 – 20.000Hz Bridged Class Class-AB Frequency Response ( 0, -3dB) 5 – 50,000Hz Total Hamonic Distortion < 0.04% at 4 ohms, 1,000Hz Signal-to-Noise Ratio (reference: 1W into 4 ohms), CEA-2006 Compliant 80dBA at 4 ohms, 1W Load Impedance Load Impedance Allowance 2 – 4 ohms Allowance (Bridged) 4 – 8 ohms Line Input Level/Impedance 2V/20 kohms MOS-FET Power Supply Yes MOS-FET Output Stage Yes HPF 50 – 200Hz, -12dB/oct (Variable) LPF 50 – 200Hz, -12dB/oct (Variable) Variable Input RCA Level Control 0.25 – 5V Variable Speaker Input Control 1- 20V Bass Boost Control at 45Hz Y (45Hz, 0 – 18dB) RCA Terminals (In/Out) 2 pairs (Nickel-plated In), 1 pair (Nickel-plated Out) Power Supply Terminals 1 pair (Nickel-plated) Speaker Out Terminals 2 pair (Nickel-plated) Protection Circuitry (Thermal / Short Circuit / Overload / DC Offset) Yes Anti-Pop Circuit Yes Side Covers Yes Power On Indicator/Protector Indicator Power On (GREEN)/Protector (RED) Dimensions (W x H x D) 310 x 60 x 300mm (12-1/4″ x 2-3/8″ x 11-13/16″) Heatsink Dimensions (W x H x D) 250 x 58.5 x 280mm (9-7/8″ x 2-5/16″ x 11-1/16″) Categories: Amplifiers, JVC Amplifier, Stereo Amplifier Tags: amplifier, JVC
